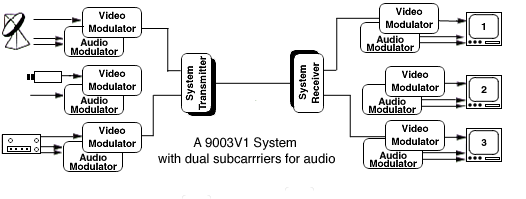

Trunking Systems 9000V-High-Capacity Trunking System Single-Mode Fibre Introduction Features Specifications Diagram Back to Trunking Systems Index The 9000V is a high-capacity trunking system for video communications designed to serve as a backbone system for particularly demanding security systems applications. A system consists of a transmitter operating at 1310 nm capable of supporting up to 32 input video modulators; a receiver capable of supporting up to 32 video demodulators; and all necessary card cages for rack mounting units, power supplies, and interconnection cables required. Optionally, each video channel may include up to two subcarriers for audio and/or data transmission. Features Video, Audio, and Data Transmitted One Way Over One Fibre. Expandable Up to 32 Channels. Supports Up to Two Audio or Data Subcarriers Per Video Channel. RS232 or RS422 Data Formats; also TTL-Level Signalling. LASER Light Source. Alarm Displays. Automatic Gain Control Circuitry. Video Bandwidth: 8 MHz. Audio Bandwidth: 10 Hz to 10 KHz. System Impedance: 50 ohm. Connectors: Optical, FC/PC; Video, BNC; Audio/Data, 9-pin sub D. Architect and Engineer Specifications Power/Temperature/Size 90~264 VAC. Operates at 32° to 122° F (0° to 50° C). Storage at -40° to 185° F (-40° to 85° C). Standard EIA Rack 19.0" W x 10.0" D x 5.25" H (48.3 x 25.4 x 13.134 cm). Rack accommodates power supply, controllers, and 14 plug-in cards. For more information on this system, please complete our enquiry form.
